18W UK wall plug AC DC adapter CE UKCA

United Kingdom 3pin plug 18W AC DC switching power supply adapter

Features：

18w AC DC adapter switching power supply CE UKCA certificates, 3V -36v, 18W max, IEC62368, IEC60950, IEC61558, IEC60335, IEC60601, IEC61010 standards

Email Datasheet Video

Product Detail

18W 100-240V ac input to DC output switching power supply adapter United Kingdom wall plug

Model：XSGxxxyyyyUK, Safety certificates: CB, UL, cUL, FCC

Voltage: 3V to 36V, Current: 0.1A to 3A, power 18W max

Input:

1. INPUT VOLTAGE RANGE：90Vac to 264Vac

2. RATED INPUT VOLTAGE：100Vac to 240Vac.

3. INPUT FREQUENCY RANGE：47Hz to 63Hz

Output:

RATED OUTPUT	SPEC. LIMIT
RATED OUTPUT	Min. value	Max. value
Output regulation	3VDC	36VDC
Output load	0.0A	0.1A-3A
Ripple and Noise	-	＜150mVp-p
Output Overshoot	-	±10%
Line regulation	-	±1%
Load regulation	-	±5%
Turn-on delay time	-	3000ms
Hold up time	10ms	-
Hold up time	10ms-	-

Related Models:

XSG030yyyyUK	3V, 300mA - 3A	0.9W max
XSG042yyyyUK	4.2V, 300mA - 3A	12.6W max
XSG050yyyyUK	5V, 300mA - 3A	15W max
XSG060yyyyUK	6V, 300mA - 2.5A	15W max
XSG072yyyyUK	7.2V, 300mA - 2A	14.4W max
XSG084yyyyUK	8.4V, 300mA – 2A	16.8W max
XSG090yyyyUK	9V, 300mA - 1.8A	16.2W max
XSG100yyyyUK	10V, 300mA – 1.5A	15W max
XSG120yyyyUK	12V, 300mA - 1.5A	18W max
XSG126yyyyUK	12.6V, 300mA – 1.5A	19W max
XSG146yyyyUK	14.6V, 300mA – 1.2A	18W max
XSG150yyyyUK	15V, 300mA - 1.2A	18W max
XSG168yyyyUK	16.8V, 300mA – 1A	16.8W max
XSG180yyyyUK	18V, 300mA - 1A	18W max
XSG190yyyyUK	19V, 300mA – 900mA	18W max
XSG200yyyyUK	20V, 300mA – 900mA	18W max
XSG210yyyyUK	21V, 300mA – 850mA	18W max
XSG240yyyyUK	24V, 300mA – 750mA	18W max
XSG252yyyyUK	25.2V,300mA – 700mA	18W max
XSG290yyyyUK	29V,300mA – 600mA	18W max
XSG292yyyyUK	29.2V,300mA – 600mA	18W max
XSG294yyyyUK	29.4V,300mA – 600mA	18W max
XSG300yyyyUK	30V, 300mA – 600mA	18W max
XSG336yyyyUK	36V, 300mA – 500mA	18W max
XSG360yyyyUK	36V, 300mA – 500mA	18W max

Popular CE UKCA Listed Power Adapters

5V 1A power adapter XSG0501000UK; 5V 2A power adapdter XSG0502000UK; 5V 3A power adapter XSG0503000UK

9V 300mA power adapter XSG0900300UK; 9V 500mA power adapter XSG0900500UK; 9V 1A power adapter XSG0901000UK

12V 500mA power adapter XSG1200500UK; 12V 1A power adapter XSG1201000UK; 12V 1.5A power adapter XSG1201500UK

15V 500mA power adapter XSG1500500UK; 15v 800mA power adapter XSG1500800UK; 15V 1A power adapter XSG1501000UK

18V 300mA power adapter XSG1800300UK; 18V 500mA power adapter XSG1800500UK; 18V 1A power adapter XSG1801000UK

24V 300mA power adapter XSG2400300UK; 24v 500mA power adapter XSG2400500UK; 24V 750mA power adapter XSG2400750UK

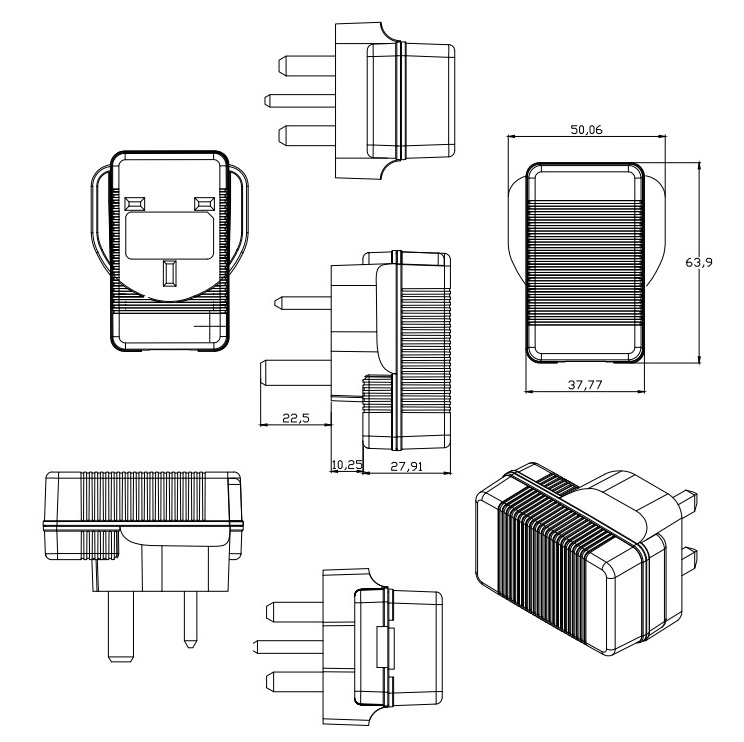

Drawings: L63.9* W50* H27.9mm

18W UK plug power adapter

Xinsu Global Uk plug AC DC adapters have got the CE and UKCA for united Kingdom market, The power adapters have the advantages of low ripple, high efficiency, stable quality, long life, etc. we have a large number of customers that base in the UK and are well received by British customers.
